Building a 100ah Portable Battery Solution

[KZ7K]

This is a very simple project. The wiring is straight forward and can literally be done by anyone. This will power a UHF/VHF and HF radio for hours (or days). If anyone needs any help or has any questions, just let me know!


Parts list below

• 100ah battery: https://a.co/d/08O2xCtp

• Main breaker for the battery: https://a.co/d/0gm5u2oy

• USB Outlet: https://a.co/d/08IQf4GG

• 12v "Cigarette Lighter" outlet: https://a.co/d/0bRNJC0I

• Velcro to hold stuff together: https://a.co/d/0aptXFGJ

• 12v fuse / distribution block: https://a.co/d/08tfx7Ep

• Brackets to hold battery in enclosure: https://a.co/d/07CZQ7c8

• Wire for the internal wiring: https://a.co/d/0hJyYCXe

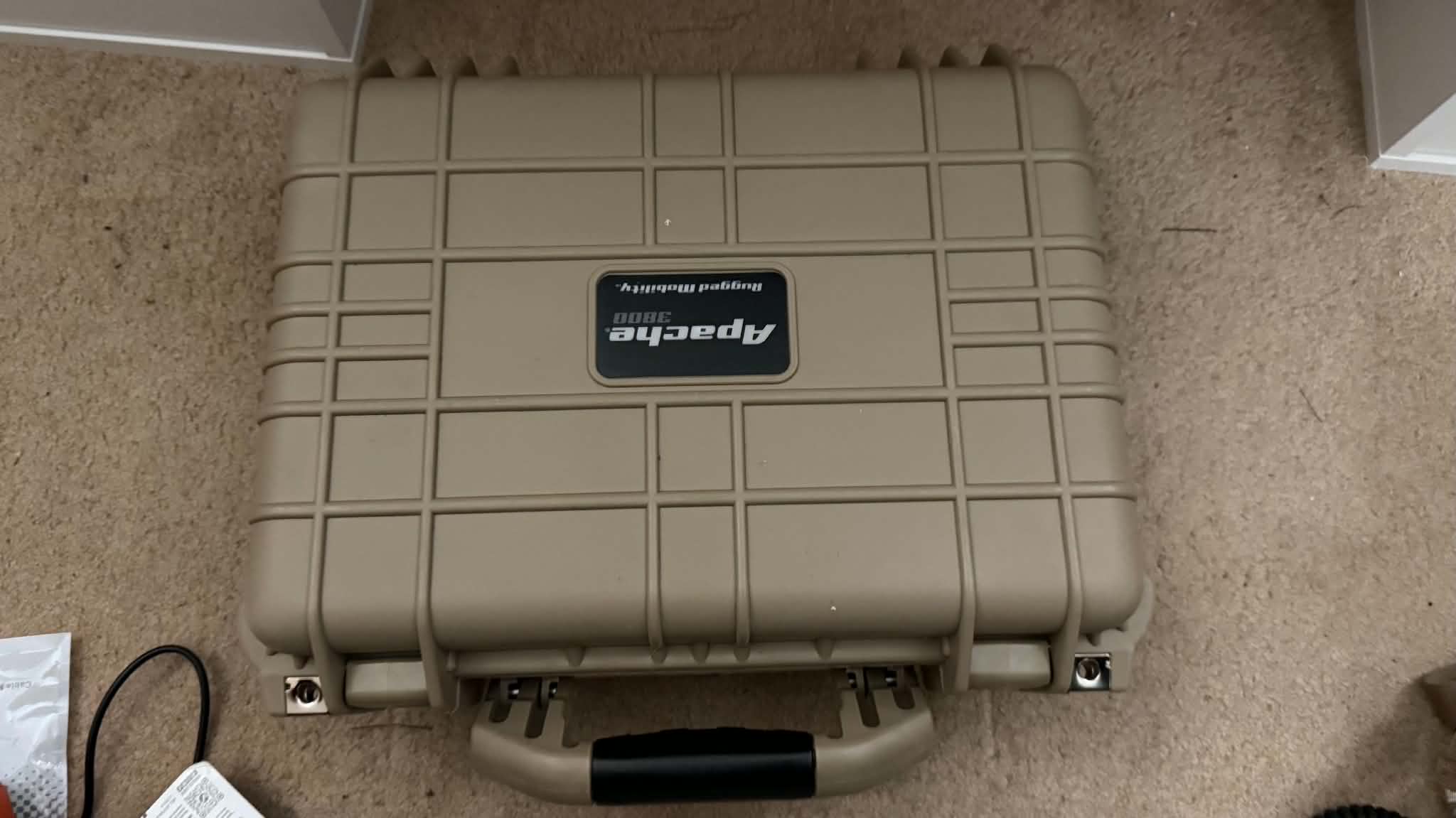

• Enclosure for the entire setup: https://www.harborfreight.com/3800-weat ... 56769.html
